Gear Motor Reducer make use of drive systems of greenhouses and livestock houses, which has outstanding features and competitive price. As the professional gear motor manufacturer, the gear motor reducer is a kind of greenhouse pulling screen system, which is easily installed. The main transmission components made from the rack and pinion, rack and pinion mechanism
Features:
1, Compact structure, easy to installation and operation, long life span.

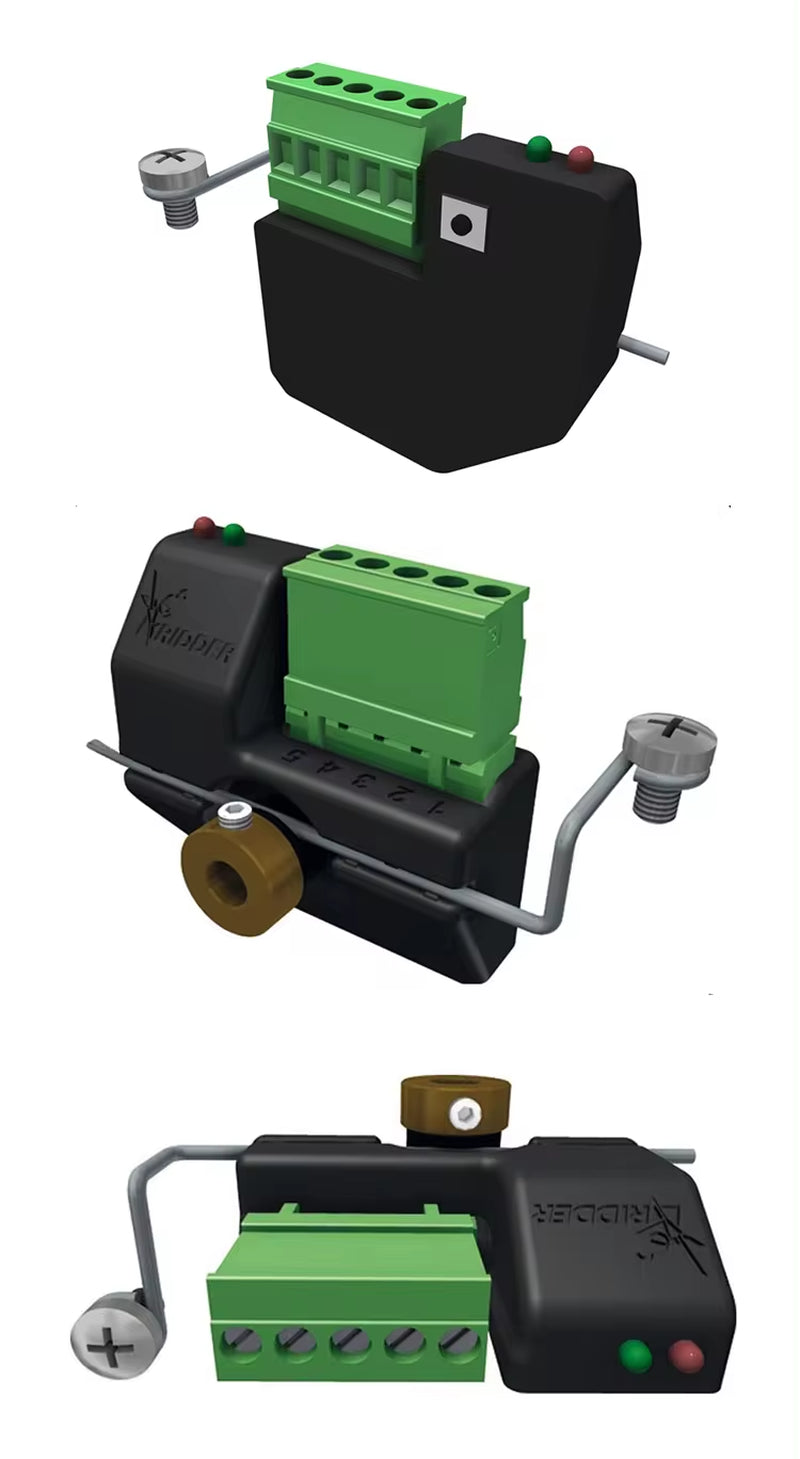

2, Install limit switch and emergency limit switch for reducing failure impact.
3, Low noise and beautiful apperance.

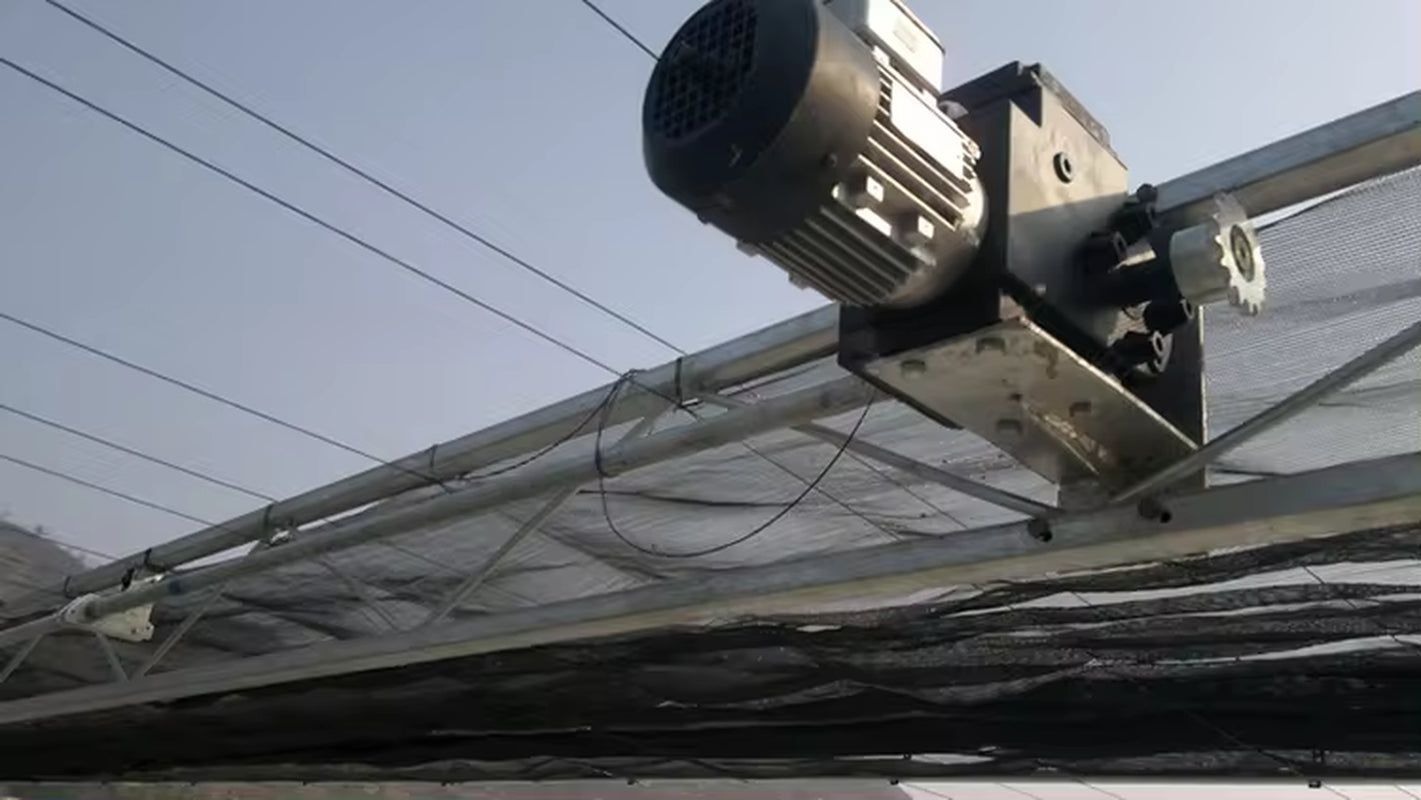

4, Widely used in greenhouse shading system and open window system.
Technical Parameters
| Model |
Torque(N.m) |
Voltage(V) |
Power(KW) |
Output Speed(r/min) |
Weight(KG) |
Size(mm) |
| GW-10 |
100 |
Triphase 380 |
0.18 |
2.6
5.2
|
28.0 |
465*245*210 |
| GW-30 |
300 |
Triphase 380 |
0.37 |
2.6
5.2
|
28.3 |
465*245*210 |
| GW-40 |
400 |
Triphase 380 |
0.55 |
2.6
5.2
|
29.2 |
465*245*210 |
| GW-80 |
800 |
Triphase 380 |
0.75 |
2.6
5.2
|
29.4 |
465*245*210 |
