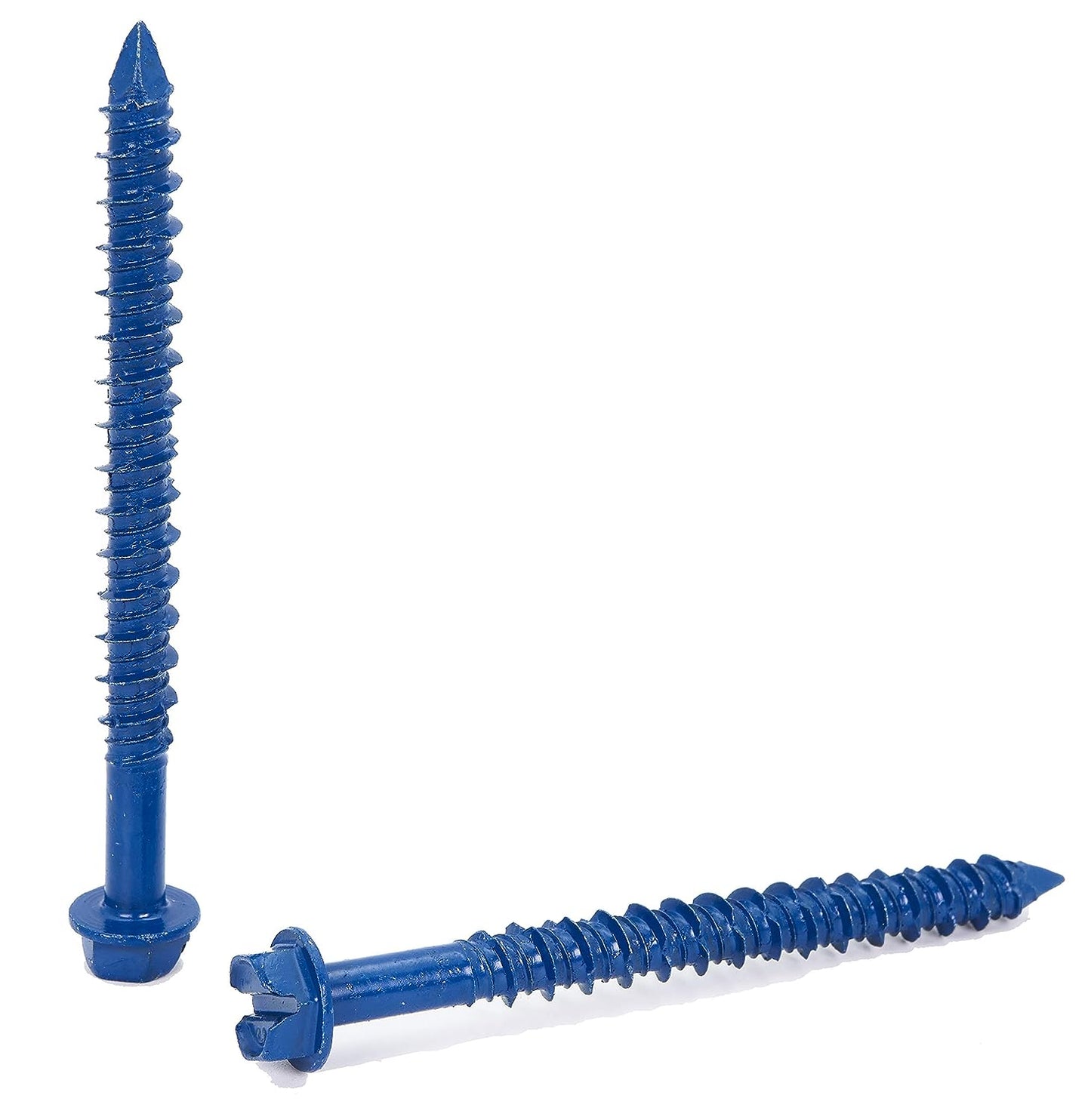

1/4" X 2-3/4" Hex Head Concrete Screw Anchor with Drill Bit for Anchoring to Masonry, Block or Brick (100 per Box)

Applications
The anchor is made from Carbon Steel, and is Blue. This anchor is designed for use in Concrete, Block, and Brick.
Environment
The anchor is designed for use in a Dry environment.

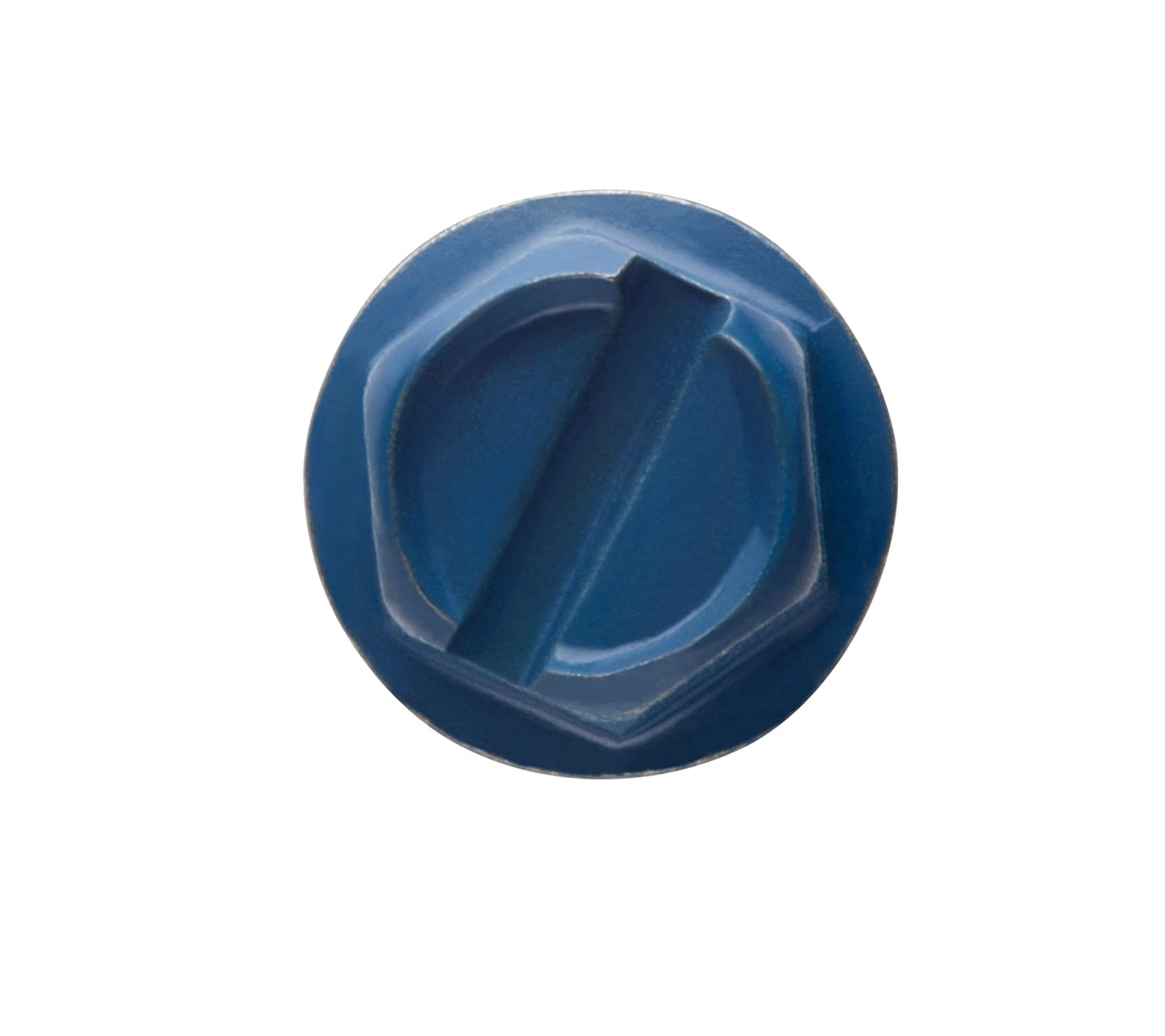

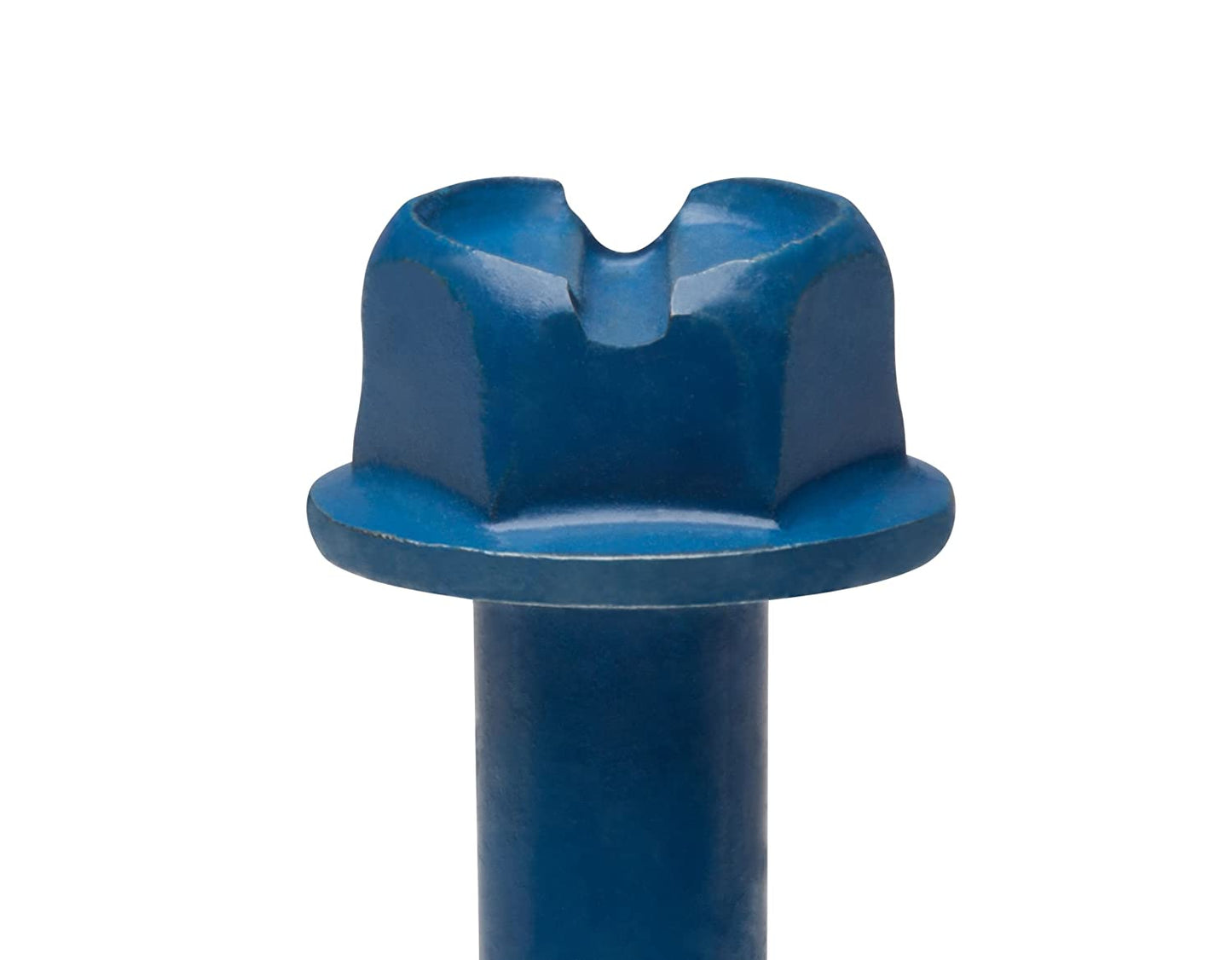

Head Style
The anchor is a Hex Washer head and is designed to allow the head to sit on top of the surface of the item being attached.
Hole Diameter/Bit Diameter
The anchor requires a 3/16" hole to be drilled in the base material (Concrete, Block, and Brick). The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill.
Driver Required
A 5/16" nut driver is required for driving the anchor into the base material.
Diameter of Anchor
The diameter of the anchor is 1/4".
Length Anchor
The length of the anchor is 2-3/4"
Thread Length
The length of the threads on the anchor is 1-3/4" in length.
Minimum Embedment
The minimum anchor embedment into the concrete is 1". Therefore, the anchor must be installed so that a minimum of 1" of the anchor is embedded into the concrete.
Maximum Fixture Thickness
The maximum fixture thickness or the maximum thickness of the material being fastened for a anchor is 1-1/4" to 1-3/4". This will ensure that the minimum embedment of 1" will be met.
Fixture Hole Diameter
The hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. The 1/4" diameter anchor requires the hole in the fixture to be 5/16".
Spacing between Anchors
Each anchor must be spaced a minimum distance of 4" from each other when measured center to center.
Edge Distance
It is very important not to install the anchor any closer than 3" from an unsupported edge of the concrete.
